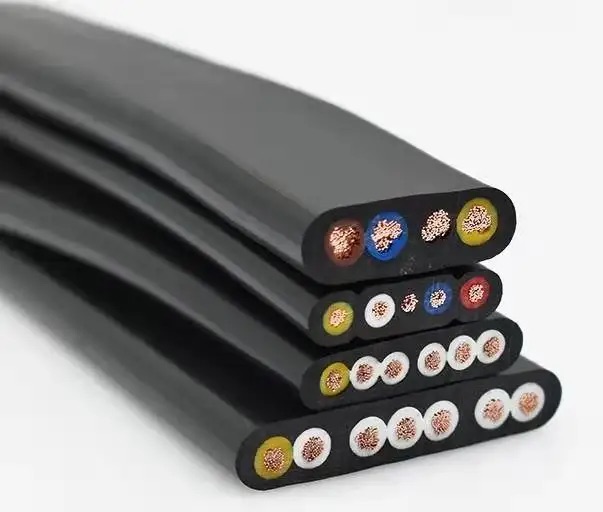

Crane cables is a term used to cover a range of specialist cables powering and controlling cranes, hoists, festoons, conveyors and gantries.

In all parts of hoisting and crane systems our crane flat cables can be used in their ideal use cases, be it as control lines or power cables – whether on the construction site or at the harbour, in transport facilities or on production sites. Our crane cables can be used to implement a variety of projects, be used in container spreaders, moveable construction parts, cable feeds in festoon systems or even as drag chain cables and in electrically driven handling systems.

Structure:
Conductor: Superfine copper strands acc. To VDE 0295, class 5
Insulation:  FPE, PE, or HT PVC 105 ℃ , resistant to oil, flame resistance and self-extinguishing
Color: Acc. To 227IEC (brown, blue, black. Green/yellow) 5 cores or more with black number with white digital coding
Sheath:      Butadiene-acrylonitrile rubber, resistant to oil, flame retardant and self-extinguishing
Color:         Black(RAL9005) or Grey (RAL7001)
Standard:   Acc. To VDE0482, part 265-2-1 resp. EN50265-2-1 and IEC60332-1

Technical Data:
Rated voltage: ≤1.5mm 300/500V, >1.5mm 450/750V
Test voltage: ≤1.5mm 2500V, >1.5mm 3000V
