Application:

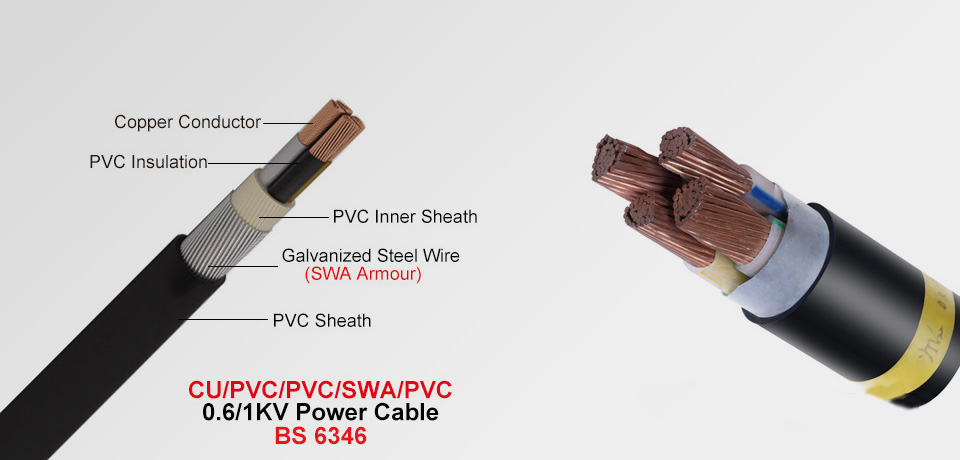

PVC/XLPE copper power cable is used to transmit and distribute power in the power transmission and distribution system.

It is generally applied to fields including power, construction, mines, metallurgy, petrochemical industry, and communication in the complete replacement of oil immersed paper insulated power cables and in partial replacement of PVC-insulated power cables.

Standard:

International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, and ICEA upon request

Installation:

the installation temp should not be over 20℃, if the ambient temp is lower than 0℃, the cable should be preheated.

The bending radius of the cable should not be less than 8 times.

After installation, the cable should withstand a voltage test for 15min. 3.5kv D.C.
