Application:

These cables are used as a connection to welding robots in the automotive industry, and shipyards, and for manually / automatically operated lines and spot welding.

The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats, and patrols.

Standard:

BS EN 50525-2-81

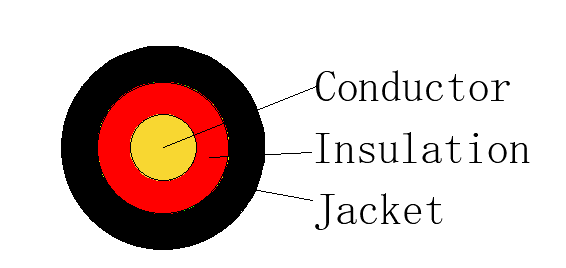

Structure:

Conductor: Generally to Class 6 flexible copper conductor according to BS EN 60228 (previously BS 6360)

Separator: PET (Polyester Tape)

Sheath: Rubber compound, Type EM5 according to BS EN 50363

Technical Data:

Operating Voltage: 1000V

Operation Temperature: –40°C to + 85°C

Bending Radius: 6x overall diameter

Special Version Upon request

Color Codes

RD-RED Color Codes

E-Black Color Codes
