APPLICATION:

Copper Conductor PVC Insulated and Sheathed Flexible Control cable is used for control, loop control & line protection when the rated voltage is 0.6/1kV or less.

Standards:

IEC502, IEC332-3

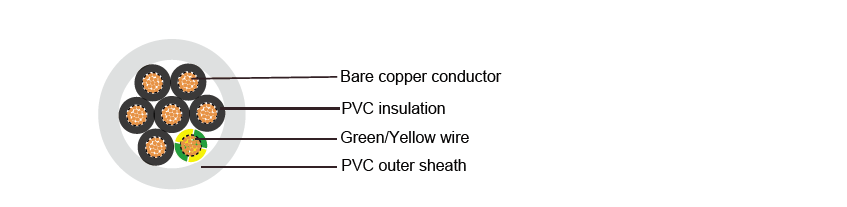

Structure:

Conductor: Flexible copper / Tinned copper conductor

Insulation: PVC

Sheath: PVC

Sheath Color: Black or Gray (Bespoke cable)

Single-core: 20D ± 0.05, multi-core: 15D ±0.05

Temperature Rating: 0℃ to 90℃
