Application and Description:

SY Steel Wire Braid Cable is supplied to a wide number of industries including building and construction

(often in airports), rail and transport infrastructure, transmission, distribution and power networks as well as

automation and process control. SY Cable is used as interconnecting cable for measuring, controlling or

regulation in signal and control equipment. This braided control cable is found frequently on assembly and

production lines, conveyors, in computer units and machine tool manufacture. The SY Cable’s flexible and

versatile design makes it a great choice for linking fixed and mobile equipment – as well as projects where

fixed installations are required. With the right protection (such as keeping it out of direct sunlight), SY Control

Cable is useful for outdoor installations. The SY Flex is most suitable, however, for work in dry or moist

indoor environments.

Standard and Approval

BS6500, VDE0250

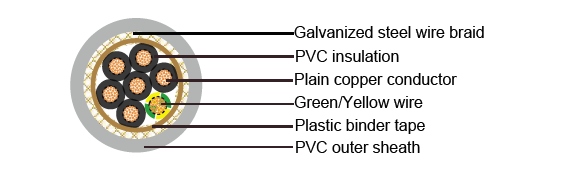

Structure

- Plain copper conductor

- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5

- PVC core insulation type Y12

- Black with White numbers

- Green-yellow grounding (3 conductors and above)

- PVC bedding type YM2

- Galvanized Steel Wire Braid

- Transparent PVC outer jacket type YM2

Technical Characteristics:

- Working voltage: 300/500 volts

- Test voltage: 3000 volts

- Minimum bending radius: 10 x Ø

- Flexing temperature: -15º C to +70º C

- Static temperature: -35º C to +70º C

- Short circuit temperature: +160º C

- Flame retardant: IEC 60332.3

- Insulation resistance: 20 MΩ x km
